擴散結構，平板型陶瓷管封裝、雙面冷卻...
擴散結構；
平板型陶瓷管封裝、雙面冷卻；
| Type | VDRM VRRM | IT(AV) THS 55℃ | ITSM | dv/dt | di/dt | IDRM IRRM | IGT | VGT | IH | VTM/ITM | RTH (j-hs) | Tjm | M2 | Outline |
| 25℃ | ||||||||||||||
| V | A | KA | V/μS | A/μS | mA | mA | V | mA | V/A | ℃/W | ℃ | KN | ||
| MT100A | 100-2000 | 100 | 3 | 100 | 100 | 40 | 35-250 | 0.8-2.5 | 20-200 | 2.4/1200 | 0.040 | 125 | 10-20 | |
| MT160A | 100-2000 | 160 | 3 | 160 | 100 | 40 | 35-250 | 0.8-2.5 | 20-200 | 2.4/1200 | 0.040 | 125 | 10-20 | |
| MT200A | 100-2000 | 200 | 4 | 200 | 100 | 40 | 35-250 | 0.8-2.5 | 20-200 | 2.4/1200 | 0.040 | 125 | 10-20 | |
| MT300A | 100-3000 | 300 | 4 | 300 | 100 | 40 | 35-250 | 0.8-2.5 | 20-200 | 2.4/1200 | 0.040 | 125 | 10-20 | |

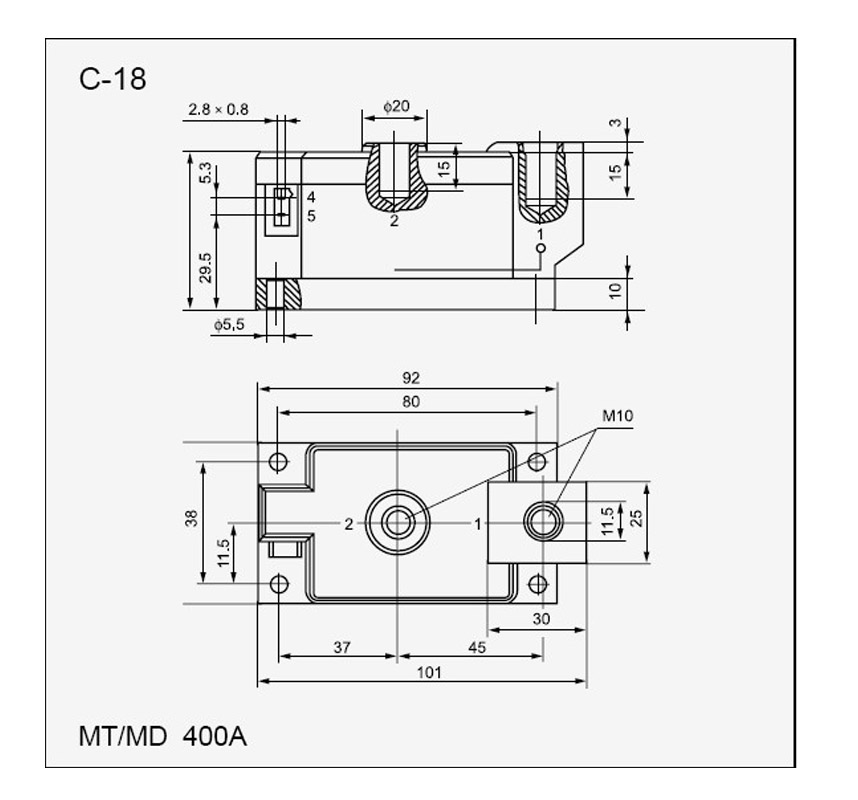

| MT400A | 100-6500 | 400 | 5 | 500 | 100 | 40 | 35-250 | 0.8-2.5 | 20-200 | 2.4/1200 | 0.040 | 125 | 10-20 | C-18 |
| MT500A | 100-6500 | 500 | 6.4 | 800 | 100 | 50 | 35-250 | 0.8-2.5 | 20-250 | 2.4/1500 | 0.035 | 125 | 15-20 | C-18 |

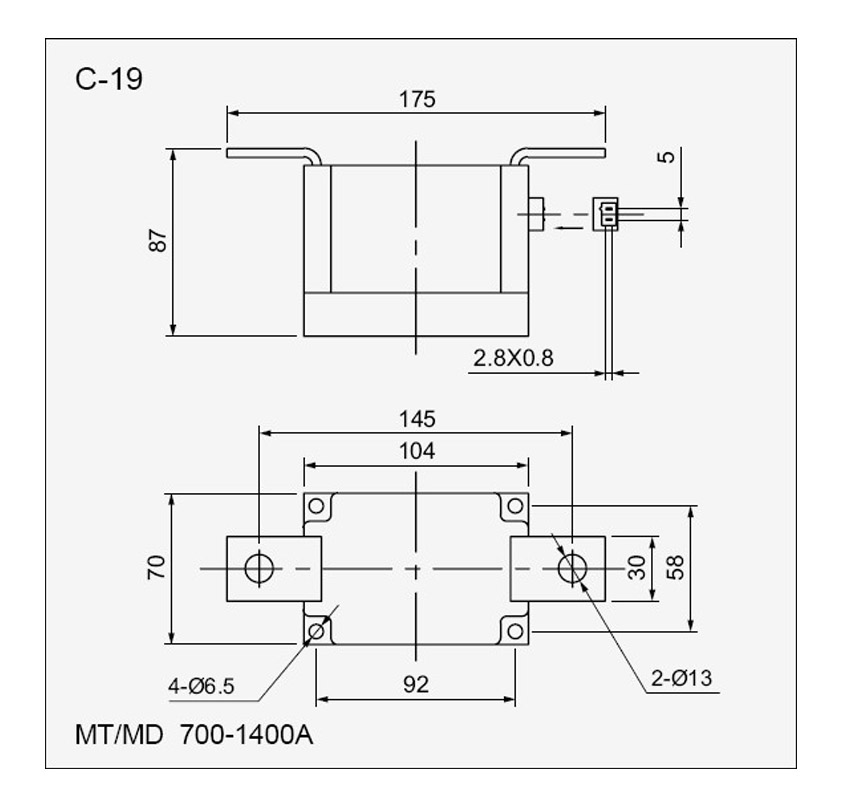

| MT800A | 100-6500 | 800 | 10 | 1000 | 100 | 50 | 40-300 | 0.8-3.0 | 20-250 | 2.2/2400 | 0.032 | 125 | 15-20 | C-19 |
| MT1000A | 100-6500 | 1000 | 13 | 1000 | 150 | 80 | 40-300 | 0.8-3.0 | 20-300 | 2.4/3000 | 0.022 | 125 | 21-30 | C-19 |
